EBS 6600/6900

SEMI sarl > EBS 6600/6900

The EBS-6600 BOLTMARK® II printer is an economical printer designed for simple applications.

Affordable purchase price, extremely low consumables cost and lowest power consumption in the CIJ printer market. Paired with a 100% INOX stainless steel housing and ACPS power supply, the EBS-6600 offers basic marking options and unmatched reliability.
The BOLTMARK® II series printers are characterized by a multitude of additional configurations and options. Correctly selected solutions will adapt the devices to work in difficult conditions and allow work in three shifts (24/7), without interruption.

Why EBS 6600...


Exceptional flexibility in the configuration of printing systems. Two kinds of drivers, 5 kinds of 7D (7 nozzles), 16D, 25D, 32D, 64D printheads, having common or stand-alone ink tanks, so that each head can print with different ink color.

Ecology and energy

Extremely low power consumption (only 19 W) creates a new quality in the CIJ printer segment. With low consumption of consumables, the BOLTMARK®-II series printers take the lead in eco-friendly and economical marking equipment.


As the first  one on the market, with our new “ACPS” we are capable to deal with a power failure in a new way. Up to 30 seconds the coder can print on after electricity is gone. If the power does not come back soon enough, the printer will clean itself and automatically shut down. This feature is available as an option.

Degree of protection - IP55 as standard

IP55 – Protection of the housing against the ingress of water and dust allows to ensure the reliability of the coder for a long time. The printer’s keyboard and screen and all ports are resistant to chemicals and water jets from any direction.

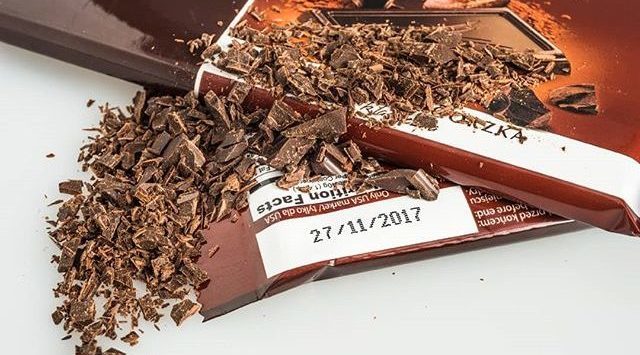

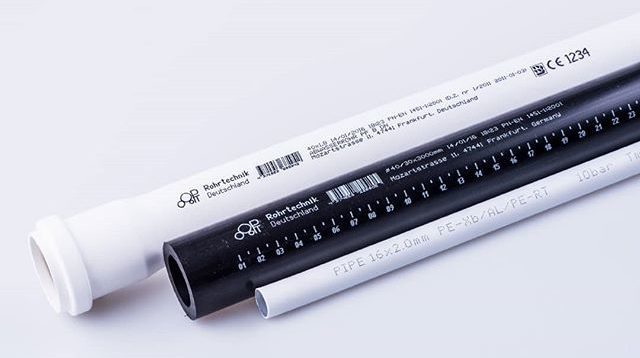

Application images of EBS 6600/6900


Housing stainless steel

Housing dimensions

  •  width 300mm
  •  hight 458mm
  •  depth 211mm

Printhead dimensions straight diameter Ø 40mm; length 199mm

Weight about 12,5kg without fluids

IP protection class, printer casing(excluding the printhead) IP55 (standard)


Number of printheads 1

Printer position during printing vertical

Printhead position during printing any

Head cable

  • head cable length 3m

Distance from the printhead to an object from 0 to 30mm


  • USB, current efficiency 300 mA
  • PHOTO (photodetector input)
  • SHAFT (shaft encoder input)
  • optional connections (e.g. RS-232)

Terminal a built-in terminal equipped with an air tight, splash proof, chemicals resistant                            alphanumerical keyboard and a big touch control LCD (touch screen)


Enviroment working temperature from

  • +5 to +40°C (from 41 to +104°F), for static operation
  • +15 to +40°C (from +59 to +104°F) for dynamic operation
  • relative humidity: up to 90% without condensation

Acceptable exposure to vibration and impacts

  • vibration: max. 1g, max. 10Hz
  • shocks:    max. 1g, max. 2ms

Power supply

  • supply voltage: 100-240 VAC, 50/60 Hz
  • max. current consumption: 0,6 – 0,2 A

Compressed air not required!!!

Required inactive time none, the device can rund uninterruptedly for 24 hours

Print height  from 0,8 to 14mm

Maximum dots 16 (optional 25)

Number of texts 100


  • edited with graphics editor
  • maximum height is determined by selected text profile

Type of ink  non pigmented, based on methyl-ethyl ketone or ethanol

Ink color  black, different versions available

*) note –  the manufacturer reserves that:

the range of available features, options and printer parameters may vary and depend on the option you have negotiated
